SP1R: In-Ear Solution Powered by Radio

SP1R

The SP1R is a completely redesigned in-ear hearing protection and communication solution in a small and compact yet rugged package. Built specifically to enhance two-way radio communications in high-noise environments, it is powered by your two-way radio, thus eliminating the need for a battery inside the unit. Similar to the rest of Sensear’s portfolio, the SP1R pairs Sensear’s patented technology and noise suppression microphones to allow users in high-noise environments to communicate.

The SP1R has the option of earpieces with an in-ear microphone or earpieces supported by a lightweight headset with an external boom microphone. Additionally, the SP1R has an intrinsically safe option, the SP1R-IS, with TIA, CSA, & UL certifications.

DOWNLOAD DATASHEET  BUY NOW  REQUEST A QUOTE



Volume Limiter



Volume Limiter

360° Situational Awareness


360o Situational Awareness

Hearing Protection



Protects Hearing

Face-to-face Communication


Face-to-Face Communication

Learn More about SP1R
  • Small compact design built into a larger ergonomic Push-to-Talk button
  • Detachable earpiece assembly with two options (earplugs with an in-ear mic or a lightweight headset with earplugs and a noise-canceling boom mic.)
  • SENS® Technology (face-to-face communication and 360° situational awareness)
  • Disposable foam ear tip for user comfort
  • 82 dB(A) in-ear volume limiter
  • Clear two-way radio communication in high-noise environments
  • Connects to most industry-leading two-way radios via a wired connection
  • No battery, the unit is powered by the radio
  • The in-ear mic option is ideal for use with respirators and breathing protection devices
  • Noise Reduction Rating of up to 31dB NRR
  • Intrinsically Safe (IS) with TIA, CSA, & UL certifications

NOTE: We will gladly repair or replace your Sensear product, at our discretion, with one of equal or greater value under our 1-year guarantee. This warranty does not cover abuse, alteration, theft, loss, or unauthorized and/or unreasonable use of your Sensear product. This warranty does not cover accessories.

DOWNLOAD THE FULL DATASHEET

DOWNLOAD THE FULL DATASHEET

General

Headset type In-Ear (Ear Plugs)
IP Rating IP54
Power Uses power from a two-way radio battery, a two-way radio cable is required (see datasheet for more information)


Hearing Protection

Volume limiter 82 dB(A) [programmable]
Region Australia / NZ USA / Canada Europe
Standard AS/NZS 1270:2002 ANSI S3.19-1974 / ANSI S12.6-2008 Method B EN352-2
Result SLC80 NRR /NRR (SF) SNR
Foam tip 28dB, Class 5 31dB / 29-39dB 38dB
Silicon tip 19dB, Class 3 24dB / 21-35dB 32dB


Communication

SENS® 360o Situational Awareness 90 dB(A)
Voice transmission In-Ear Microphone
Face-to-face Sens® mode (< 90dB)
Two-way radio Radio cable with Push-to-Talk module (required)



DOWNLOAD THE FULL DATASHEET



Information


SP1R Data Sheet


Product Manuals


smartPlug Quick Start Guide




SP1R-IS Hazardous Location Headset Certified to some of the most stringent intrinsic safety standards:
  • TIA-4950-A
  • CSA C22.2 No. 157.92
  • UL 913 5th Edition

These products are sold separately BUY NOW - Accessories & Parts (SP1R & SP1R-IS)

PRGTAB01

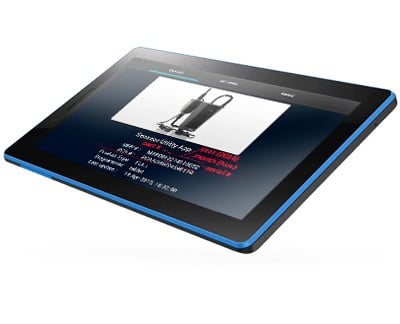

Lenovo-Tab-3-Essential-sensear-utility-app

Programming tablet

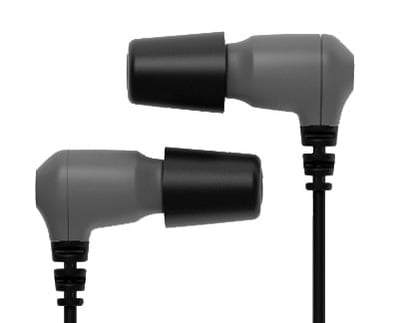

FETSM001 / FETMD010 / FETLG010Foam-Replacement-Ear-tips3



Foam tips - MSRP 10 pack - Small / Medium (most common size) / Large

MFP00166B

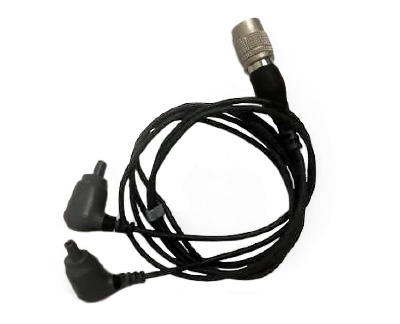

smartPlugR-replacement

SmartPlugR Replacement Earbuds
(for SmartPlugR only)



Need a Radio Cable for SP1R?

BUY NOW - Cables (smartPlugR/SP1R) or

Please submit the completed form below, so we can get back to you with information and available radio cables.

SP1R with Boom Mic and In-Ear plugs and radio
