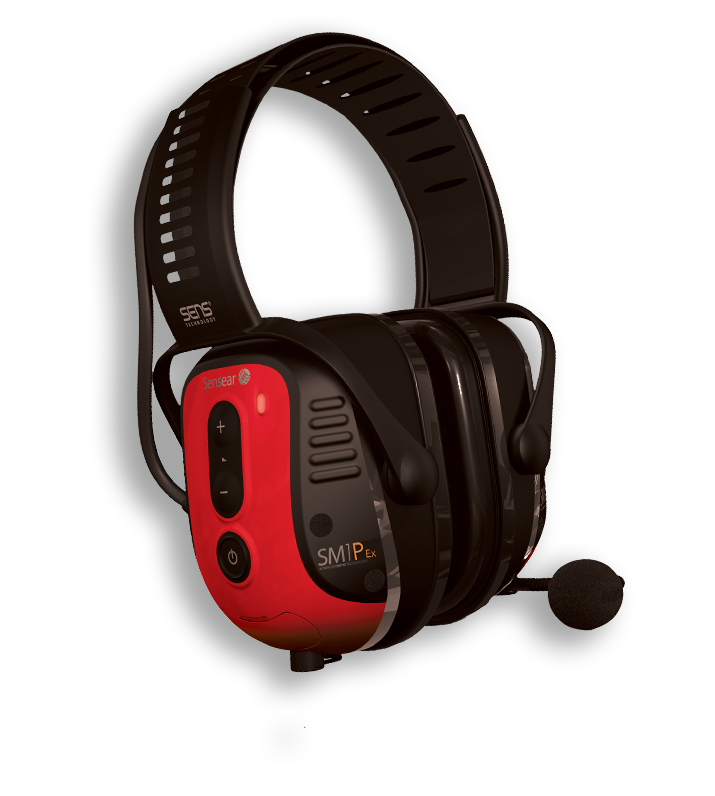

SM1P - Ex

smartMuff Pro - Intrinsically Safe (ATEX): Hazardous Location (Ex) Headset


Communicate Safely via Two-Way Radio and Bluetooth® in Explosive Environments

The SM1P-Ex enables high-noise two-way radio, Bluetooth®, headset-to-headset communication, and face-to-face communication in explosive environments that require ATEX and IECEx certification.

Users of the SM1P-Ex benefit from clear communication using its wired or wireless capabilities as well as face-to-face communication while still protecting their hearing and remaining aware of the surrounding work environment with our innovative SENS® Technology. It’s the perfect solution for your hazardous environments such as explosive chemicals and fuels as well as combustible powders.



SM1P-Ex DATASHEET  BUY NOW  REQUEST A QUOTE

  • Connect to intrinsically safe two-way radios via Bluetooth® or a removable wired connection
  • Connect to intrinsically safe mobile devices (HFP, HSP, and A2DP profiles) via Bluetooth®
  • ATEX and IECEx approved
  • Headset-to-headset communication (approx. 50m / 150ft range) via Short-Range
  • Talk 'face-to-face'
  • Available in Headband, Behind-the-Neck, or Helmet Mount style
  • SENS® Technology
  • Enhances speech while suppressing background noise to a safe level
  • Programmable Volume Limiter factory set to 82 dB(A)
  • Remain aware of surrounding noises and hazards
  • VOX capable
  • Built-in rechargeable battery (Li-ion Polymer, 4-hour charge time)
  • Rugged and lightweight design
  • Range of 23-27dB NRR (noise reduction rating)
  • Noise-canceling boom mic
  • A new cable connection at the ear cup allows you to use it as a wired headset or as a completely wireless headset via Bluetooth® and Short-Range

NOTE: We will gladly repair or replace your Sensear product, at our discretion, with one of equal or greater value under our 1-year guarantee. This warranty does not cover abuse, alteration, theft, loss, or unauthorized or unreasonable use of your Sensear product. This warranty does not cover accessories.



General

IP Rating  IP54
Power
2250mAh Li-ion Polymer Battery, 24 hours (wired connection) / 18 hours (wireless with Bluetooth®/Short-Range activated), 4-Hour Charge Time


Hearing Protection

Volume limiter 82 dB(A) [programmable] – only applicable when the headset is powered on
Region Australia / NZ USA / Canada Europe
Standard AS/NZS 1270 ANSI S3.19 EN352-1/EN352-3
Result SLC80 NRR SNR
HB 31dB, Class 5 27dB 33dB
BTN 27dB, Class 5 24dB 30dB
HM 26dB, Class 5 23dB 31dB


Communication

SENS® 360o Situational Awareness 95 dB(A)
Voice transmission

Boom microphone – noise-canceling, VOX capable

Face-to-Face SENS® mode (< 95dB)
Two-Way Radio

Bluetooth® or radio cable with PTT module

Short-Range

Half-duplex communications, Up to 8 programmable FM channels, Up to 50 meters

Bluetooth® Bluetooth® 3.0, 15 meters (49 feet)





Hazardous Location SM1P-Ex series is certified to some of the most stringent intrinsic safety standards:

  • ATEX
  • IECEx
